About the IBHS Research Center

The IBHS Research Center is a state-of-the-art research facility located on a 90-acre parcel of land in Chester County, South Carolina (approximately 45 minutes south of the Charlotte airport). This unique facility enables researchers to more fully and accurately evaluate residential and commercial construction materials and systems under realistic re-creations of severe weather hazards.

This facility is also a tangible, public demonstration of the property insurance industry’s deep commitment to reducing and preventing losses that disrupt the lives of millions of home and business owners each year. The research conducted here significantly advances building science and influences residential and commercial structural design and construction, helping to create more resilient communities.

Demonstrating Risk

IBHS conducts full-scale demonstrations to illustrate and validate IBHS guidance.

Demonstrate Risk → Insiders’ View

“A picture paints a thousand words, but a video shows a thousand pictures.” Since its opening in 2010, images from the IBHS Research Center have amplified our work by graphically demonstrating the ways that wind, wind-driven rain, hail, and wildfire can damage homes and businesses, and how to affordably reduce that risk.

Over these years, IBHS has staged several full-scale demonstrations and leveraged the impact of these demonstrations through traditional media, social media, presentations, and public policy engagement. As a general matter, these demonstrations have coincided with tests conducted to advance IBHS’s research agenda relating to our core perils (e.g., the wind protection benefits of FORTIFIED Home, how a sealed roof deck prevents water infiltration, defensible space protections against wildfire). As important as these linkages have been, we can expand the number of demonstrations at the Research Center and focus on targeted opportunities to drive real-world impact through new and compelling footage.

IBHS will never abandon the pursuit of new scientific information, but new science isn’t a prerequisite for a highly effective demonstration. Rather, the goal should be to use vivid, realistic demonstrations to illustrate the benefit of good resiliency-based choices and the disastrous impacts of inaction.

IBHS’s existing videos and other media continue to be well received. That said, a relatively modest investment in new demonstrations (and refreshing of videos from the current inventory) will keep the media coming back to the Research Center for new content and reinforcement of our core resiliency message.

Campus

There are a variety of research and production opportunities at the IBHS Research Center.

Main Chamber

Hail_Demo_Building_Test_Chamber_IBHS_01

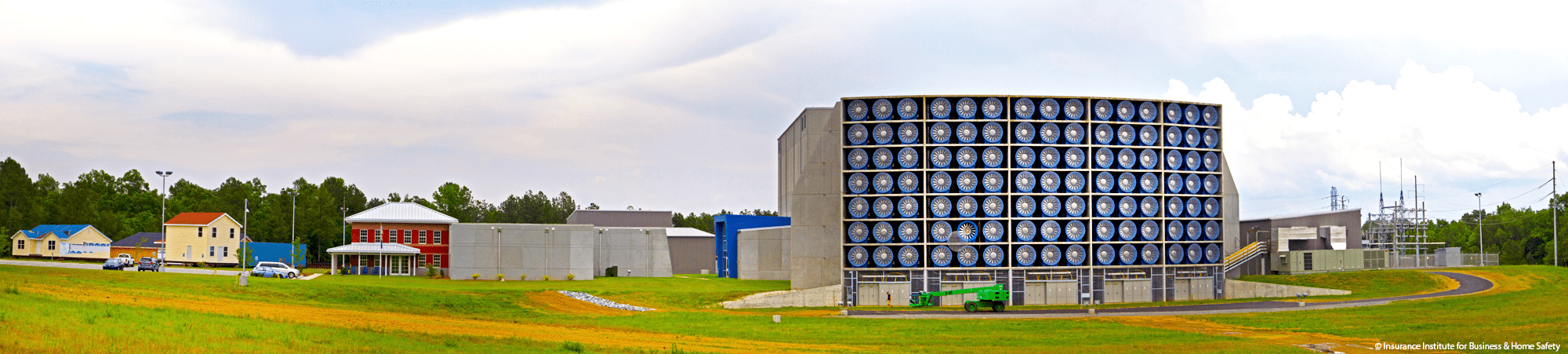

This structure is a specially designed wind tunnel that is exceptionally large—6 stories tall and 145 feet wide by 145 feet long. This equates to more than 21,000 square feet under the roof, the equivalent of 4½ basketball courts.

IBHS is the only lab in the world that can test full-scale one- and two-story residential and commercial buildings in a controlled, repeatable fashion for highly realistic windstorms, wind-driven rain, hailstorms and wildfire ember storms utilizing the unique features below.

Fans

Research_Center_Fans_IBHS_2

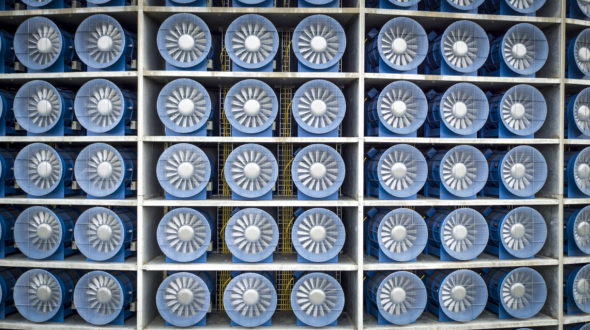

The large test chamber is easily identified by its enormous wall of 105 fans—each nearly 6 feet in diameter and equipped with a 350 HP engine. Together the fans can replicate realistic weather conditions including Category 1, 2 and 3 hurricanes (with winds up to 130 mph), extra-tropical windstorms, wind-driven rain conditions, and straight-line windstorms (also called derechos).

Small Laboratory

Hail_Steel_Ball_Lab_UL_Testing_IBHS_01

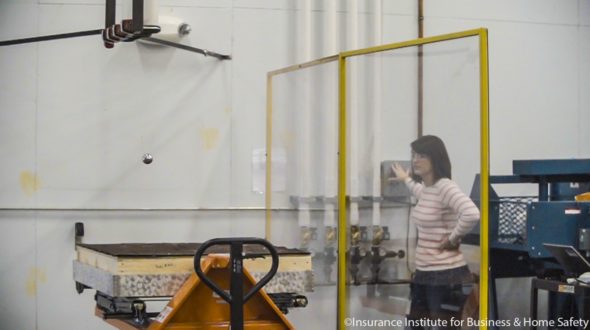

In this building, IBHS evaluates individual components of construction materials through highly controlled experiments. For example, our researchers create and store artificial hailstones—created to resemble the size and density of real hailstones we collect from storms—and then fire them at roof shingles using a hail-firing cannon. Experiments like this allow us to precisely replicate real-world conditions while testing common building materials.

Roof Aging Farm

ibhs-research-center-roof-aging-snow

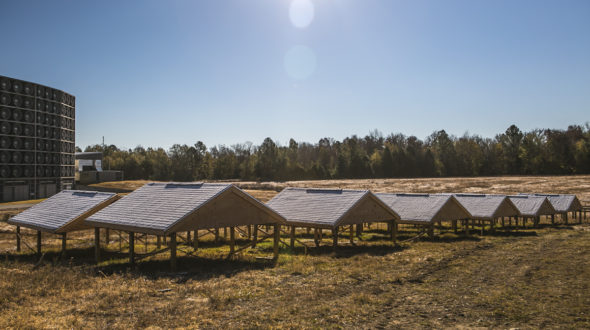

Much of today’s building science focuses on brand new materials and systems and does not take into account decay and deterioration caused by severe weather, UV exposure, and temperature fluctuations. To address this gap in research, part of our campus is dedicated to our “roof farm” project, which consists of residential and commercial roof sections that are subjected to natural aging. This project allows us to conduct long-term testing and analysis of the roofs at specified time intervals (e.g., 5, 10, 15 and 20 years) for wind, hail, and wildfire performance.

COMET Apparatus

ibhs-research-center-comet-1

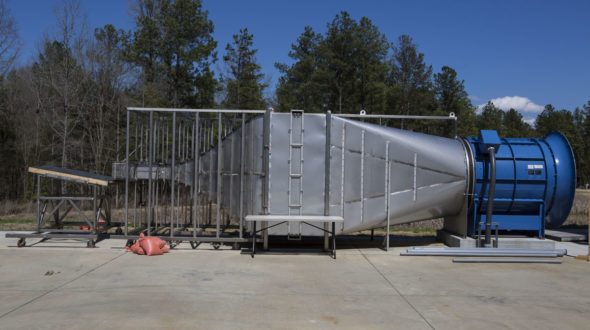

The COMET (Component Materials Evaluation Testing) apparatus consists of a single fan, similar to those in the wall of fans, which is used outdoors to test individual components of a structure such as roof shingles.
